Cable Head Termination System Products
Cable Head Termination System for Three Phase High Speed Locomotives i.e., for WAG-5, WAP-7, WAG-9, WAG-9H

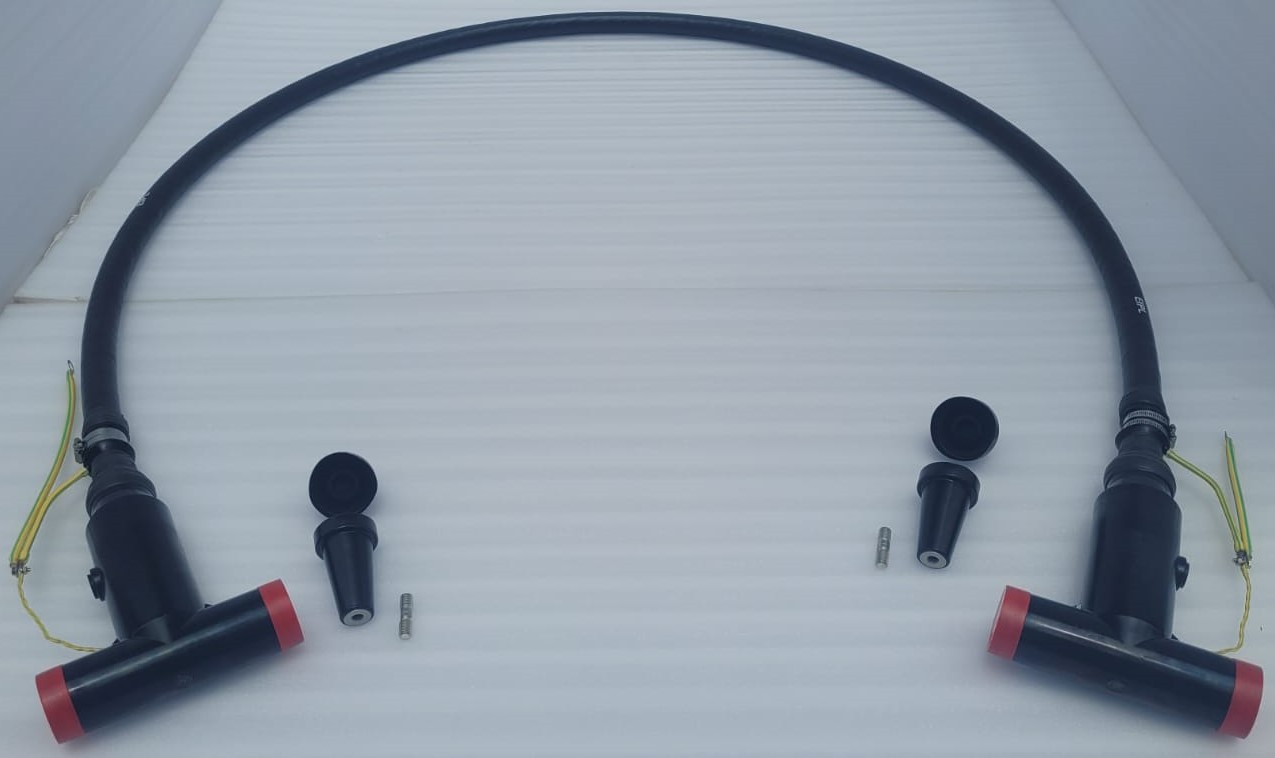

Application: High Voltage Cable with Plug - For High Speed Three Phase Locomotives such as WAP-5, WAP-7, WAG-9, WAG-9H.
More Info
| Description | Technical Details |
|---|---|
| Operating Voltage | 25kV |
| Cable | XLPE Copper Cable. |
| Indoor | T - Type Connector |
| Specification | High voltage cable with plug - CLW/ES/03/0251, Rev-1 Or Latest |

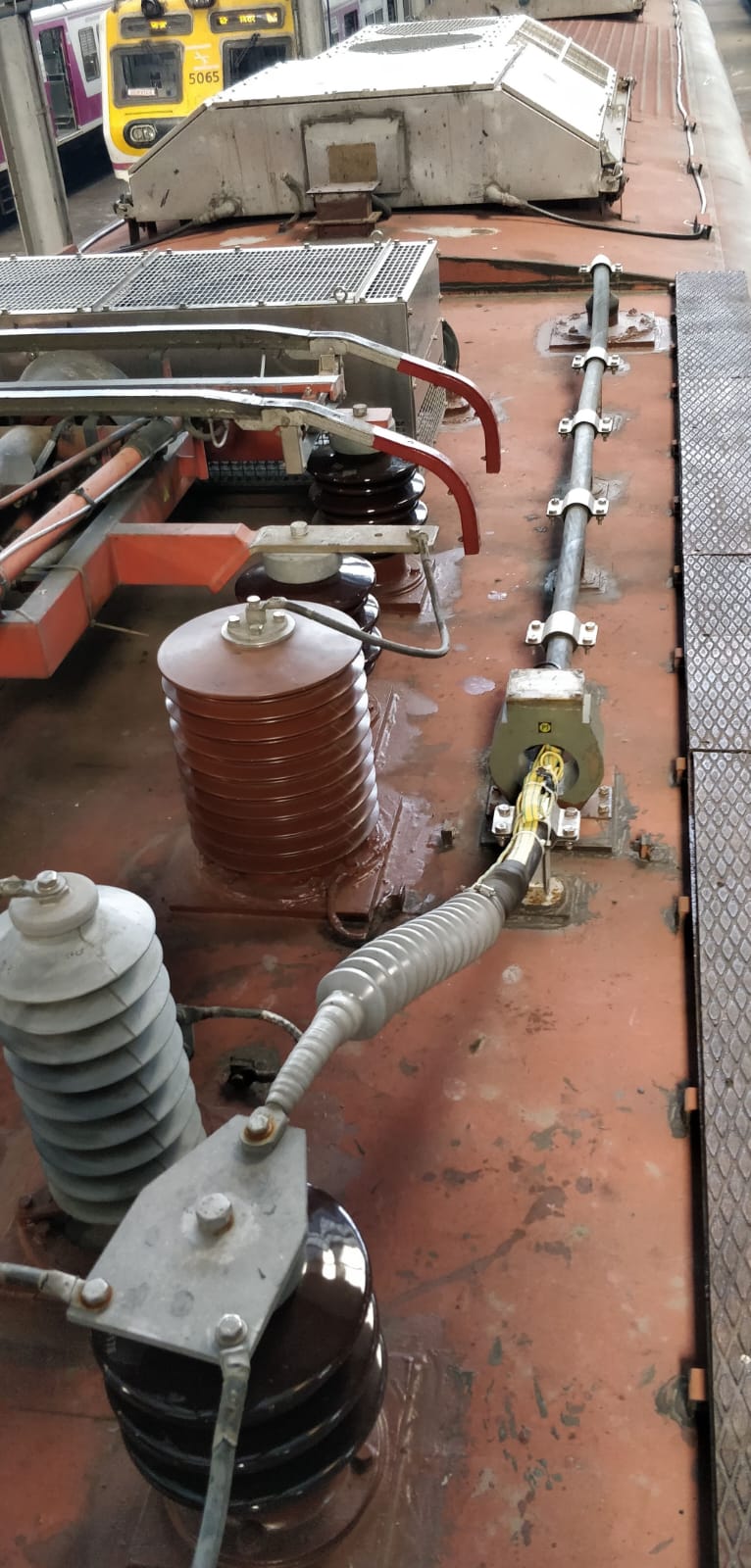

Cable Head Termination System for Three Phase High IGBT Based EMUs/MEMUs/Train-sets.
Application: For IGBT Based Three Phase Propulsion system AC-EMUs/MEMUs and Semi High-Speed Trains or Electric Train Sets.
More Info
| Description | Technical Details |
|---|---|
| Operating Voltage | 25kV |
| Cable | Special Class XLPE Cable |
| Indoor | T - Type Connector |
| Out Door | Out Door Type |

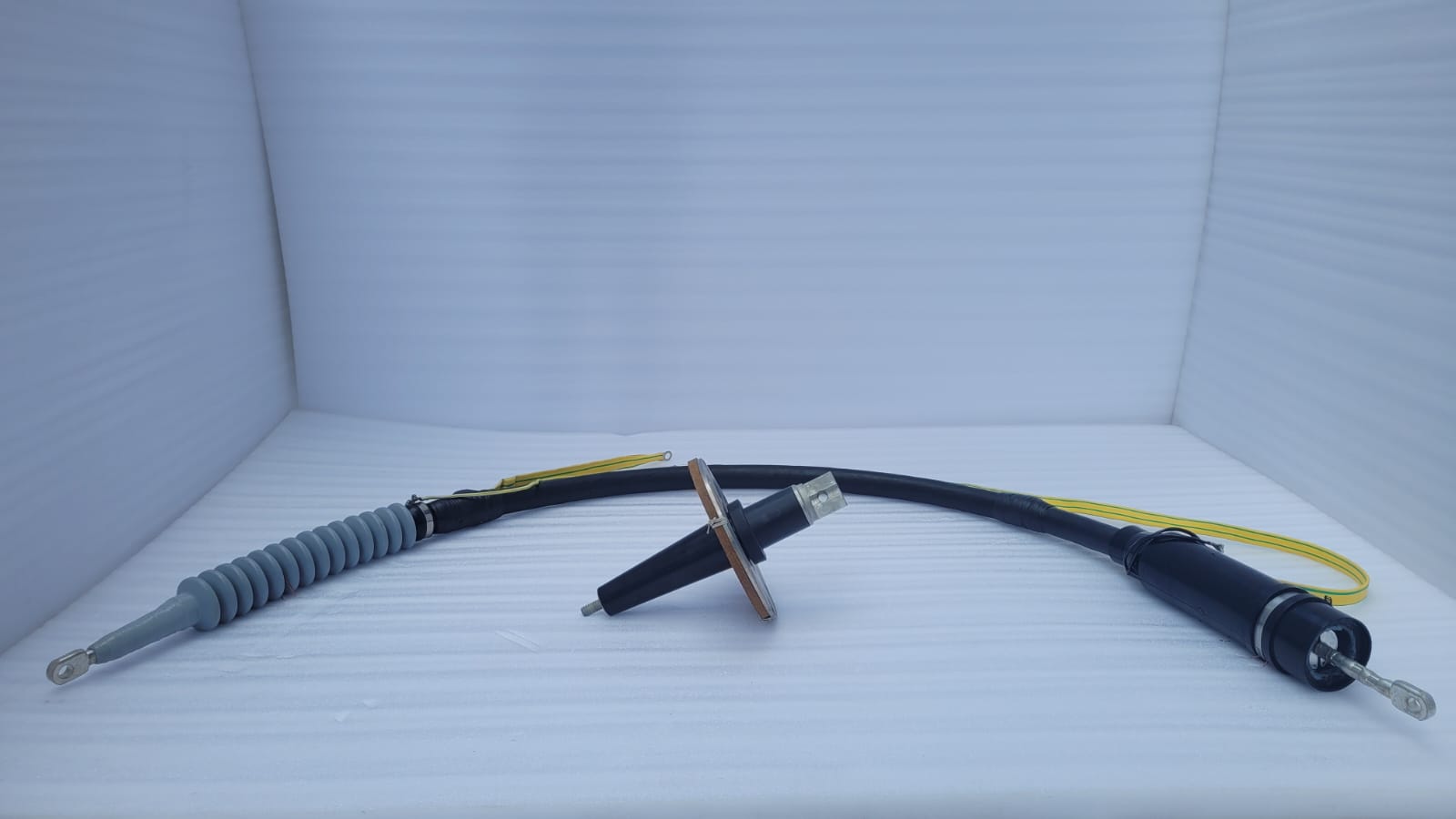

Cable Head Termination System for Conventional EMUs/MEMUs
| Description | Technical Details |
|---|---|
| Operating Voltage | 25kV |
| Cable | Special Class |
| Indoor | Straight Receptacle, 35kV Class |
| Out Door | Special |
Cable Head Termination System for Conventional locomotives
Application: For Conventional locomotives and EMUs.
More Info
| Description | Technical Details |
|---|---|
| Operating Voltage | 25kV |
| Cable | Special Cable |
| Indoor | Straight Receptacle |
| Out Door | Out Door |
